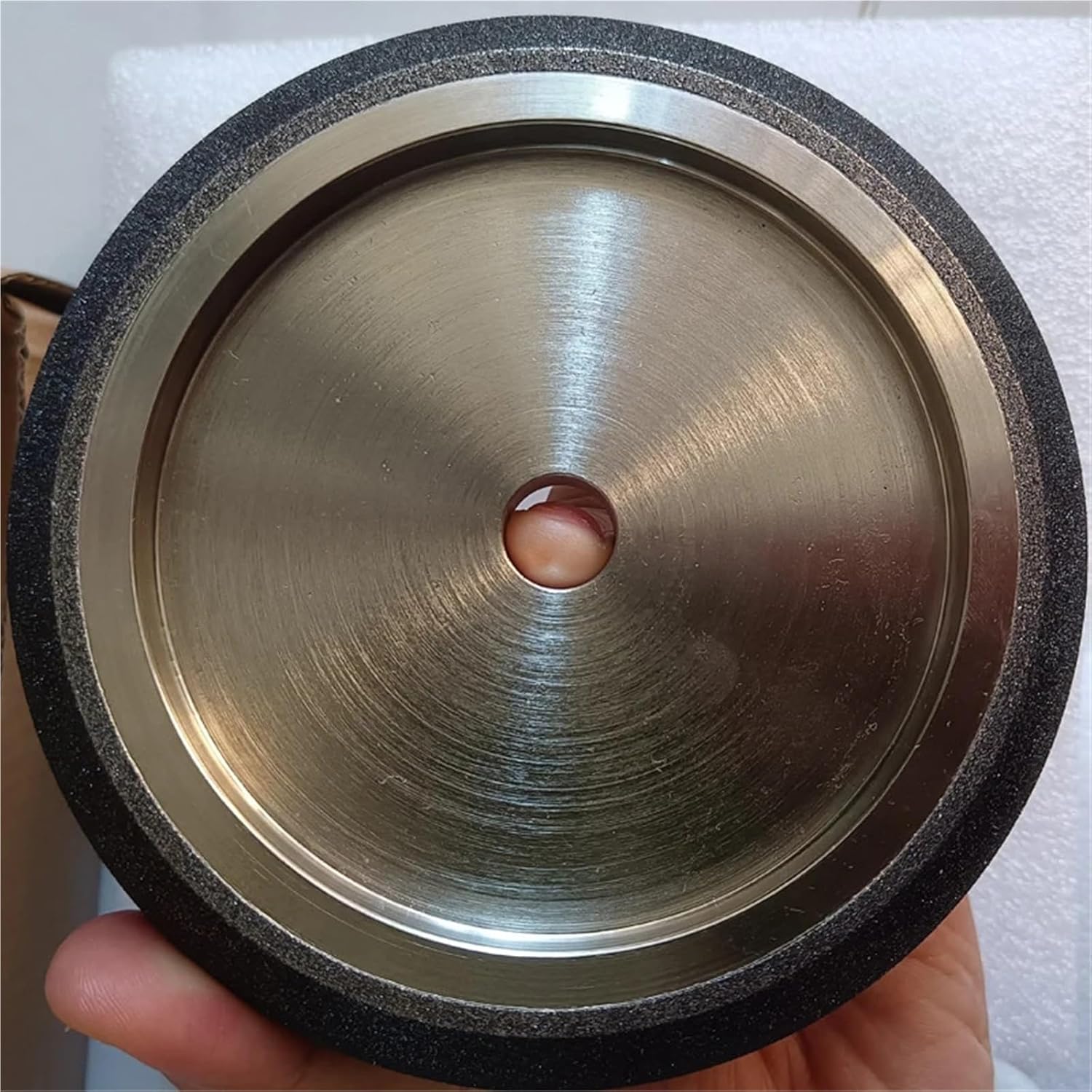

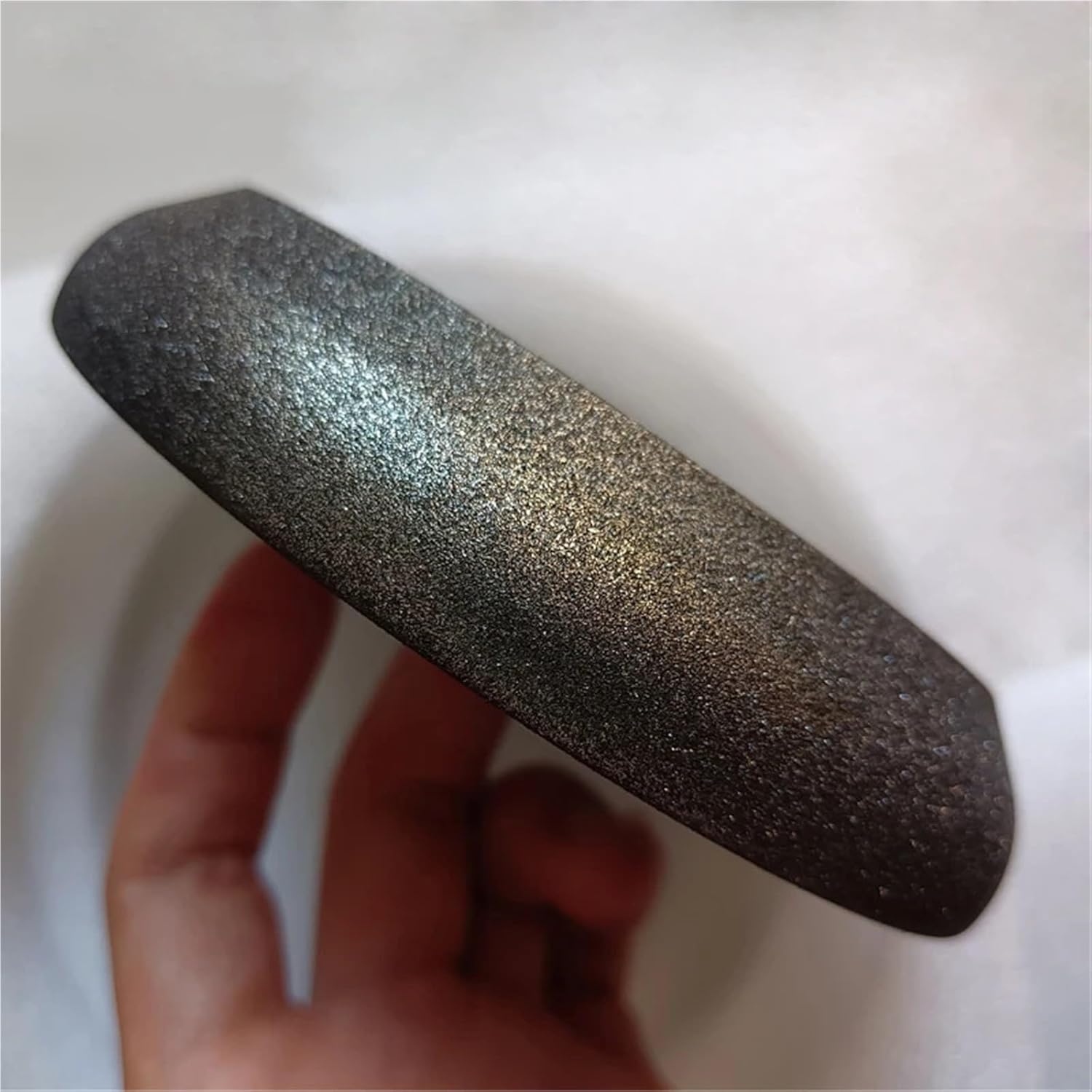

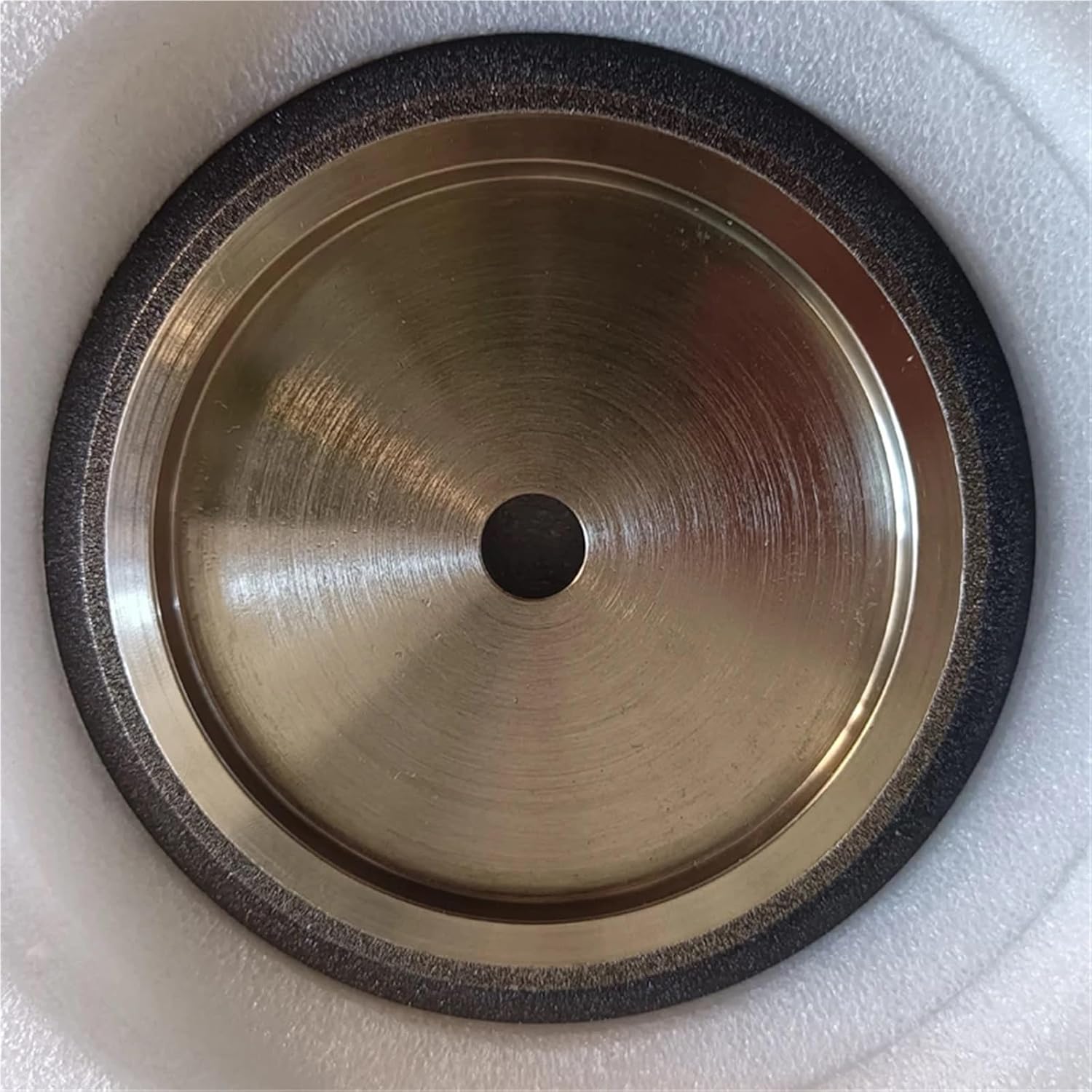

1pc 5 Inch CBN Grinding Band Saw Electroplating Grinding Wheel(Angle 10-30)

Surface Grinding Wheels5inches: 127Dx22.2TxH12.76inches:150Dx22.2TxH208inches:203Dx22.2TxH32Function: used for grinding passivation band saw bladeFeatures of different angle band saw grinding wheels:10/30: Commonly used general-purpose grinding wheel profiles, both softwood and hardwood band saws can be used;9/29: Band saws for winter wood cutting or hardwood band saws;13/29: Band saws for summer wood cutting or softwood band saws;4/32: band saw for cutting very hard wood;7/34: Band Saw for Hardwood Cutting(Please remark the angle you need when you place the order,or we will send 10/30 angle.)Specification:Product Name: Band Saw Blade Forming Grinding WheelAbrasive: CBNModel: 1F1Binder: ElectroplatingMaterial: High qualityCubic boron nitrideMaterial: cubic boron nitrideGrinding wheel base material: 45# high carbon steelDiameter (D): 125mm/150mm/200mmThickness (T): 22.2mmCenter hole (H): 12.7mm/20mm/25.4mm/32mmParticle size: 80/100 # 120/140#Usage: Electroplated CBN grinding wheels are specially used for the molding and grinding of band saw blades. The electroplating chemical process on the surface of CBN plated steel substrate can ensure grinding accuracy and tooth shape tolerance, and make the band saw blade sharper.Manufacturers mainly used for CBN grinding wheel band saws:Woodmizer, Simons Dakin-Flathers Ripper 37 (22mm, 19mm), , woodmaster C, Munkfors, Armoth, Hakansson Ro-Ma, etc.==========High-concerned chemical : NoneOuter Diameter : 5 InchUse : Commercial ManufacturePad Material : CBN
